This is a very interesting light cube that can be used for learning programming or as an ambient light. When used for learning programming, we provide rich sample code such as Arduino, Raspberry pi 4B, Micro:bit, and Raspberry pi pico. This light cube also has an excellent feature, which is that multiple light cubes can be connected together in series, and they can be controlled simultaneously or independently using the MCU.
(No welding, can be assembled in 10 minutes.)

Specification

  1. Operating Voltage: 3.3 to 5V

  2. Operating Current: Max 220mA/1pcs

  3. Interface: 3-Wire or SPI

  4. Lighting frequency: ≥ 50Hz

  5. Weight: about ?g

  6. Dimensions: 79*79*85.4mm

List

PCB cube

Acrylic cube

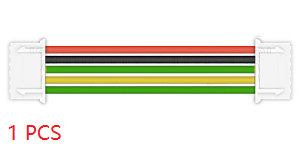

HX-2.54 4P to M-duport wire

HX-2.54 4P to F-duport wire





HX-2.54 4P M-M wire

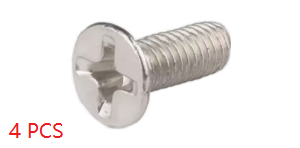

M3*8mm flat-head screw

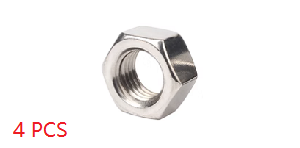

M3 nuts




Series method

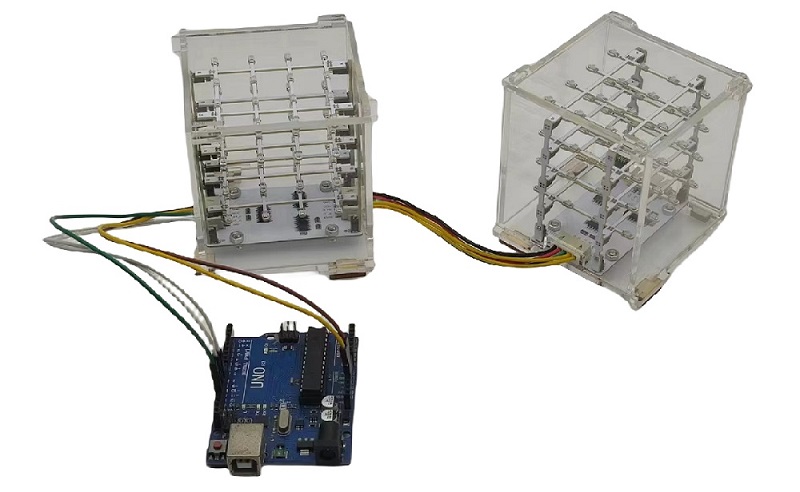

If you have multiple cubes, you can string them together as follows.

Download library file

Download resource: https://github.com/mosiwi/Mosiwi-4x4x4cube

  1. For Arduino UNO and NANO: C++ && C_language

  2. For Raspberry pi4: C_language

  3. For Raspberry pi pico: Python


The downloaded zip file will be used in later tutorials:

Tip

The downloaded zip file (the library) will be used in the tutorials in later chapters.
